Description

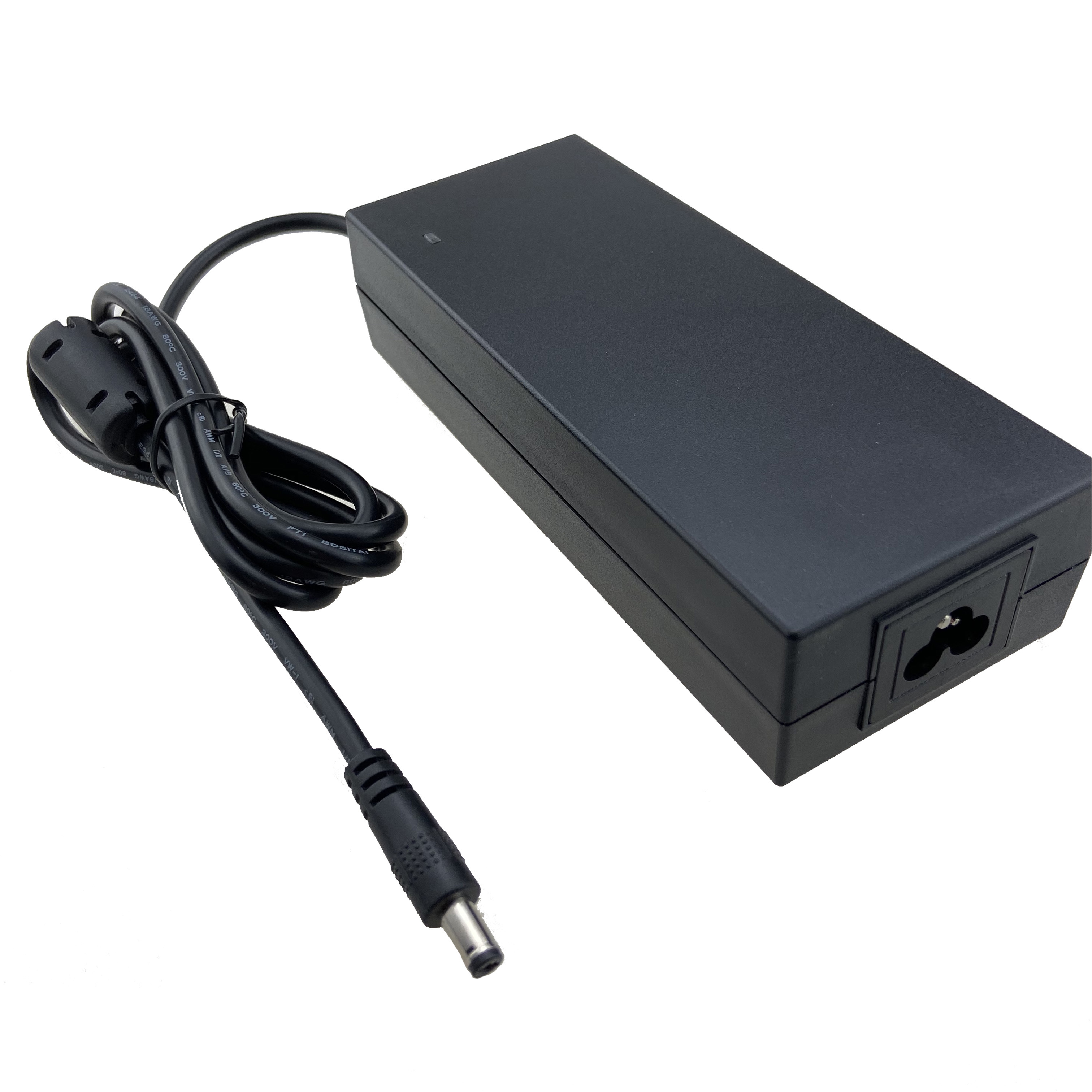

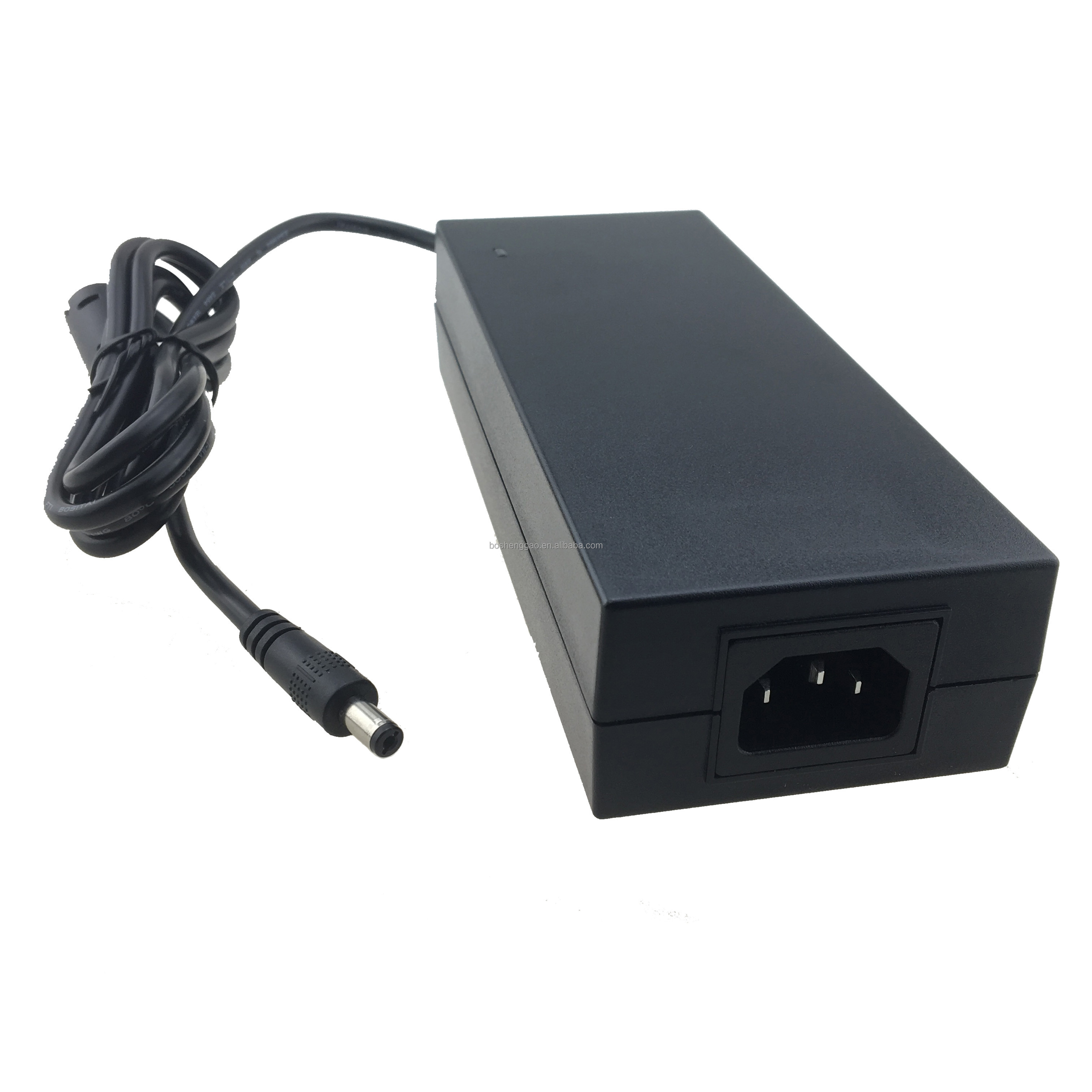

Factory hot sale Black color ABS+PC Fireproof Factory Price CCC passed 19v7.4a Adapter Grounded 19V140W Switch Power Supply IEC C6 C14 desktop power adapter 100-240vac dc adapter 19v 7.4a
Input Side(AC) | |
Input Voltage Range | 100-240VAC |
Input Voltage Frequency | 47-63Hz/ 50-60Hz |

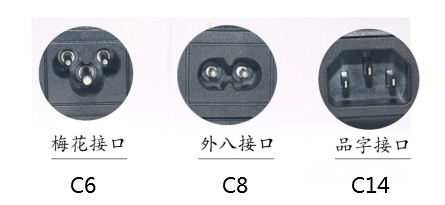

Inlet type | IEC C14/ IEC C6 |
Input Current | 2.0 Amps max at any input voltage and rated |
AC power cords(optional) | US 3prong, EU 3prong,UK 3prong,AU 3prong, India 3prong,South Africa 3prong,Thailand 3prong are also avaliable… |
Output Side(DC) | |
Output type | Dc regulated power supply(Constant voltage type) |
Output Voltage and Current | DC 19V7.4A |
Output Power | 150W Series |
Dc jack | 5.5*2.5,5.5*2.1,5.0*3.0,4.8*1.7,4.0*1.7,3.5*1.35,2.5*0.7, 6.0*3.0,6.5*4.0,6.5*4.4,6.3*3.0,6.0*4.4,5.0*1.0, cigarette lighter,2pin,3pin,micro USB,mini USB,rj11,female plug… |
Dc wire | 2464/2468/1185 14AWG, 1M/1.2M/1.5M/1.8M |
Output ripple and noise | 100mvpp at full road with 20MHz bandwidth |
Output voltage Adjustable rate | ±5% |
Other Details | |
PCBs Design | Advanced core electronic components,stable intelligent control IC |
Color | Black/White/Customized |
Warranty | 24 months |
Certificates | CCC CE-EMC CE-LVD FCC RoHS |
Protections | Over voltage protection, Over current protection, Short circuit protection. |
Aging | 100% aging test for 4 hours |
No-load Power Consumption | <0.3W |
Energy Efficiency Standard | Level VI(>=88%) |
Turn On Delay Time | <3S (AC:110V and full load) |
Operating Temperature | 0℃ to 40℃,10%-90%RH,Full load, Normal operation. |
Storage Temperature | -20℃ to 60℃, 10%-90%RH |

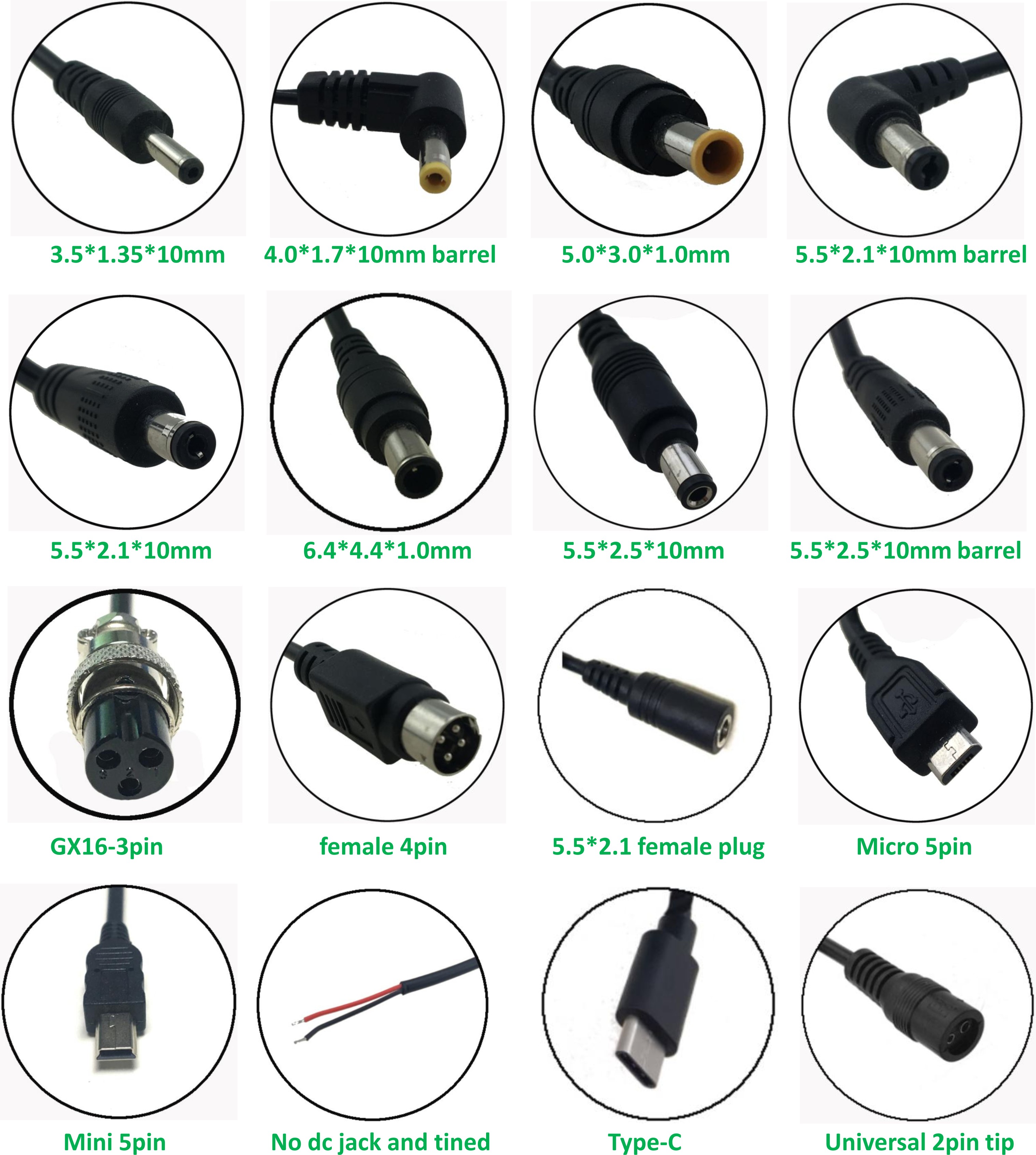

Part of dc jack:
If you can`t find the right dc head, pls reference the other sizes above table, or you can feel free to contact us.
For dc jack and dc cable, we accept customized sizes. It`s free to laser-printing your logo and company name.

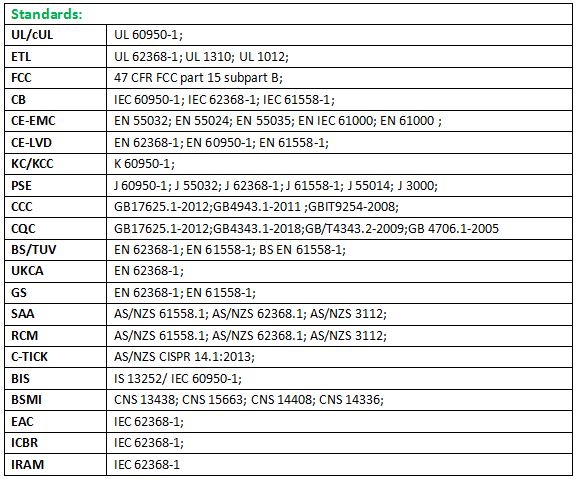

For most models, we have UL/cUL FCC KC KCC PSE CCC BIS CE EMC LVD CB BS GS SAA c-Tick RCM BSMI Rohs2.0…
Applications:
Our products are widely used for:LED Lighting,LED Strip,CCTV camera,microscope camera,advertising boxs,fan,set top box,aquarium,Monitor,Printer,Door Systerm,Small Household Appliance,LED Driver,Powerline Wifi,Mini Electronic Device,Massage Chair,Laptop,Air Purifier,Air Humidifier,Vacuum Cleaner,Hair Clipper,Medical Machine,LCD,Mobile Phone,MP3/MP4,Stereo Audio,Balance Car,Credit card terminal,…..
